DESCRIPTION

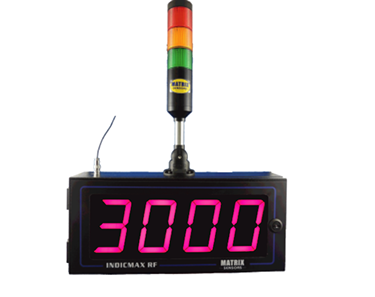

The INDICMAX RF is a wireless wall mount pyrometer. The measurement is processed by the lance and the reading is showed in the remote display. It is the joint of flexibility of a handheld with the benefits of a wall mount display. In every reading a “string” is generated by the display and sent by RS485 with date, Time, Temp and Local (up to 99 set by the lance).
FEATURES
Wireless Lance
- Temperature Range 1100°F – 3200°F
- Type ‘S’ – ITS90
- NiMH rechargeable batteries
- Duration of 96h in use and 160h standby.
- Time to recharge to full capacity is 8h max.
- Battery Charger Included.
Remoter Large Display
- Built in traffic light (green, amber, red)
- Built in Buzzer
- Serial RS485 output
- RF reach of 328 Feet.
- Up to 4 displays to a single lance.
- Up to 16 lances to a single display.
UNIQUE LANCE SYSTEM
When a contact block needs to be replaced, you only send the lance in to repair. A spare lance avoids many hours missed by replacing a repaired lance in less than a minute.
INDICMAX RF DATASHEET
INDICMAX RF MANUAL
